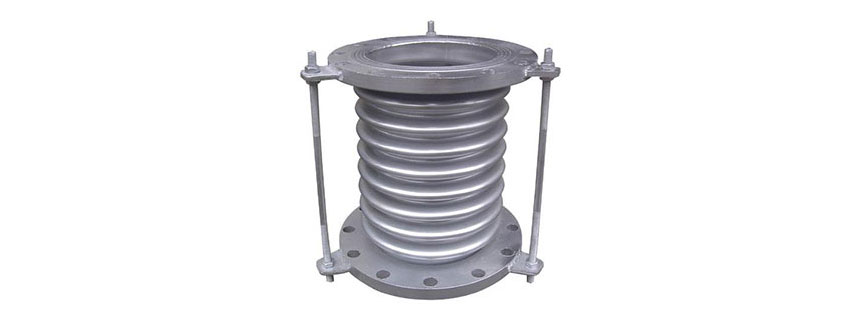

补偿器
用途：解决了管道热胀冷缩、位移和机械高频振动与管道之间的柔性连接，广泛用 于各企业工矿、能源、石油、化工、热力、电力机械、蒸气、热网工程领域。
普通轴向型PN1.0MPa外型尺寸和连接尺寸
|
公称通径 |
型号 |
轴向补偿量 |
有效面积 |
总长度 |
钢度 |
端管外径X壁厚 |
|
50 |
ZB50-1.0/e |
12/72 |
38.5 |
147/398 |
4.3/0.7 |
57×3.5 |
|
65 |
ZB65-1.0/e |
16/94 |
60.1 |
194/446 |
9.5/1.6 |
76×4 |
|
80 |
ZB80-1.0/e |
18/108 |
86.5 |
190/494 |
6.7/1.1 |
89×4.5 |
|
100 |
ZB100-1.0/e |
20/120 |
124.6 |
193/496 |
15.1/2.5 |
108×4 |
|
125 |
ZB125-1.0/e |
20/120 |
179.0 |
191/486 |
11.8/2.0 |
133×4.5 |
|
150 |
ZB150-1.0/e |
24/144 |
229.5 |
200/552 |
12.0/2.0 |
159×4.5 |
|
200 |
ZB200-1.0/e |
30/180 |
400.9 |
232/738 |
11.8/2.0 |
219×6 |
|
250 |
ZB250-1.0/e |
60/270 |
598.0 |
334/866 |
10.0/2.2 |
273×8 |
|
300 |
ZB300-1.0/e |
60/300 |
860.1 |
351/1046 |
13.9/2.8 |
325×8 |
|
350 |
ZB350-1.0/e |
60/300 |
1169.6 |
305/804 |
17.4/3.5 |
377×8 |
|
400 |
ZB400-1.0/e |
60/300 |
1492.3 |
307/861 |
18.5/3.7 |
426×8 |
|
450 |
ZB450-1.0/e |
60/300 |
1878.1 |
332/932 |
18.1/3.6 |
478×8 |
|
500 |
ZB500-1.0/e |
60/300 |
2297.5 |
355/1027 |
19.4/3.9 |
529×8 |
|
600 |
ZB600-1.0/e |
60/300 |
3265.8 |
361/1036 |
21.9/4.4 |
630×8 |
|
700 |
ZB700-1.0/e |
80/400 |
4439.4 |
504/1674 |
17.5/3.5 |
720×10 |
|
800 |
ZB800-1.0/e |
80/400 |
5705.0 |
472/1628 |
22.6/4.5 |
820×10 |
|
900 |
ZB900-1.0/e |
80/400 |
7295.0 |
476/1634 |
27.0/5.4 |
920×10 |
|
1000 |
ZB1000-1.0/e |
80/400 |
8970.7 |
476/1634 |
29.3/5.9 |
1020×10 |
普通轴向型PN1.6MPa外型尺寸和连接尺寸
|
公称通径 |
型号 |
轴向补偿量 |
有效面积 |
总长度 |
钢度 |
端管外径X壁厚 |
|
50 |
ZB50-1.6/e |
12/72 |
38.5 |
147/398 |
14.5/2.4 |
57×3.5 |
|
65 |
ZB65-1.6/e |
16/96 |
60.1 |
194/446 |
22.5/3.8 |
76×4 |
|
80 |
ZB80-1.6/e |
18/108 |
86.5 |
190/494 |
15.9/2.6 |
89×4.5 |
|
100 |
ZB100-1.6/e |
20/120 |
124.6 |
193/496 |
29.6/4.9 |
108×4 |
|
125 |
ZB125-1.6/e |
20/120 |
179.0 |
191/486 |
23.1/3.9 |
133×4.5 |
|
150 |
ZB150-1.6/e |
24/144 |
229.5 |
200/552 |
23.4/3.9 |
159×4.5 |
|
200 |
ZB200-1.6/e |
30/180 |
400.9 |
232/738 |
23.1/3.9 |
219×6 |
|
250 |
ZB250-1.6/e |
60/270 |
598.0 |
334/866 |
19.6/4.4 |
273×8 |
|
300 |
ZB300-1.6/e |
60/300 |
860.1 |
351/1046 |
16.5/3.3 |
325×8 |
|
350 |
ZB350-1.6/e |
60/300 |
1169.6 |
305/804 |
21.8/4.4 |
377×8 |
|
400 |
ZB400-1.6/e |
60/300 |
1492.3 |
307/816 |
23.2/4.6 |
426×8 |
|
450 |
ZB450-1.6/e |
60/300 |
1878.1 |
332/932 |
22.7/4.5 |
478×8 |
|
500 |
ZB500-1.6/e |
60/300 |
2297.5 |
355/1027 |
24.2/4.8 |
529×8 |
|
600 |
ZB600-1.6/e |
60/300 |
3265.8 |
361/1036 |
26.3/5.3 |
630× 8 |
|
700 |
ZB700-1.6/e |
80/400 |
4439.4 |
504/1674 |
20.5/4.1 |
720×10 |
|
800 |
ZB800-1.6/e |
80/400 |
5705.0 |
472/1628 |
25.8/5.2 |
820×10 |
|
900 |
ZB900-1.6/e |
80/400 |
7295.0 |
476/1634 |
36.3/7.3 |
920×10 |
|
1000 |
ZB1000-1.6/e |
80/400 |
8970.7 |
476/1634 |
36.7/7.3 |
1020×10 |
